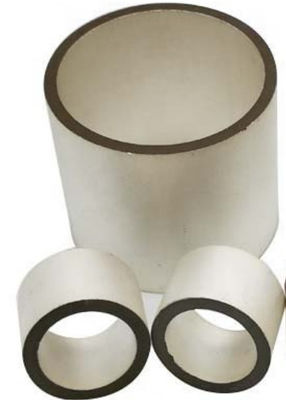

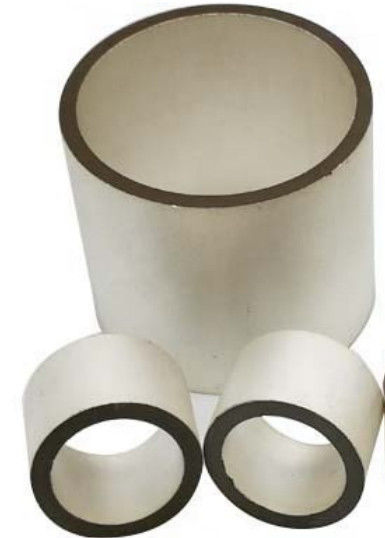

9900 PF P44 High Height Piezoelectric Tube 155KHZ PZT Tube

9900 PF P44 High Height Piezoelectric Tube 155KHZ PZT Tube

large.img.alt
small.img.alt

Large Image :  9900 PF P44 High Height Piezoelectric Tube 155KHZ PZT Tube Get Best Price

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Yujie
Certification: ISO9001
Model Number: Ø36Ø31x20

Payment & Shipping Terms:

Minimum Order Quantity: 10 Piece/Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3~30 working days
Payment Terms: T/T, Western Union
Supply Ability: 1000 Piece/Pieces per Month
Detailed Product Description
Type: Piezoelectric Ceramics Material: P44
Frequency: 155KHZ Port: Shenzhen
Name: PZT Tube Product: Piezoelectric Tube
High Light:

High Height Piezoelectric Tube

,

P44 Piezoelectric Tube

,

155KHZ PZT Tube

Piezoelectric Tube Ø36Ø31x20 PZT Ceramics Cylinder element for Hydrophone



1. Product description



Piezoelectricity is a type of electricity that occurs when materials possessing piezoelectric properties are exposed to pressure or stress. Examples of these materials are ceramics, also called piezoceramics , and crystals.

Piezoelectric Ceramics (piezoceramics), such as Piezoelectric Ceramic Ring, Piezoelectric Ceramic Disc, Piezoelectric Ceramic Tube, Piezoelectric Ceramic Ball/Hemisphere, Piezoelectric Ceramic Cylinder and Piezoelectric Ceramic Square/Rectangular.



2. Brief description of piezo ceramic element & Attributive Characters

1. Electrode form/ Modulating: External drive (diode); Self drive (transistor);
2. Thickness: Thick (T>0.5mm); Standard (0.5mm>T>0.2mm);
3. Dimension: Smallest diameter is 5mm, Biggest is 100mm;
4. Metal plate type: Silver
5. Connection terminal: Solder wire or not.





3. Applications for ceramics



Piezo Ceramic Element: Applications (Piezoceramics element; Piezo diaphragm, piezo plate)

1. For sound making:Clocks,Calculators,Telephones,Washing machines,Various(Burglar alarms,etc);
2. For transduction: Embryo monitor,Heart reflectoscope reflector,pedometer, car alarm sensor.

3. For face lift beauty devices.

4. For medical devices.

5. For distance measuring.

6. Hydrophone

7. Oceanography





Applications:



Hydrophone





We can offer high quality and high performance to customer.

As also can according to customer requested to customise different dimension and configuration if interested in our product please don't hesitate to contact us


FAQ

Q: Delivery Time

A: Based on the order quantity



Q: Payment

A: T/T,W esternUnion



Q: Quantity guarantee

A: All products will have been strictly Quality insepected before packing.



Q: Shipping

A: We have strong cooperation with DHL,TNT,UPS,FEDEX,and shipping agent for air and sea.

give the economic freight according to goods weight.



Q: Wealth of experience

A: Professional sercive.choose us,you will do the trade more easily.



Q: Good Service

A: Excellent team to offer the efficient and professional reply.



Q: Technical Problem

A: Provide Professional Technical Support.

Specifications:

Dimension:

Ø36Ø31x20mm

Piezoelectric material :

P-44 Navy Type II

Resonant Frequency : 31KHz ± 5%
Coupling Factor (KP) : >25%
Capacitance (Cp): 9900 PF ± 20%
Dielectric loss (tgδ): < 0.5%
Resonant Resistance (R) : < 40 ohm
