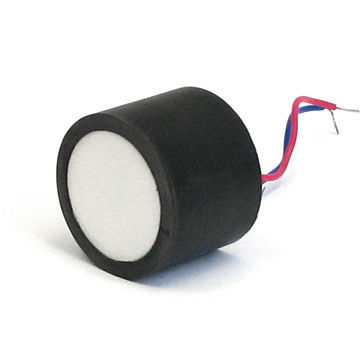

Black PZT Ultrasonic Transducer For 75KHz Ultrasonic Plastic Level Sensor

Black PZT Ultrasonic Transducer For 75KHz Ultrasonic Plastic Level Sensor

large.img.alt
small.img.alt

Large Image :  Black PZT Ultrasonic Transducer For 75KHz Ultrasonic Plastic Level Sensor Get Best Price

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Yujie
Certification: ISO9001
Model Number: KQ-75KH

Payment & Shipping Terms:

Minimum Order Quantity: 100 Piece/Pieces
Price: Negotiable
Packaging Details: Carton #: 29x29x25cm
Delivery Time: 3~20 working days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 10000 Piece/Pieces per Month
Detailed Product Description
Theory: Ultrasonic Sensor Usage: Level Sensor
Diameter: 38mm Material: Plastic
Color: Black Port: Shenzhen
High Light:

pzt piezoelectric transducer

,

ultrasonic piezoelectric transducer

PZT Ultrasonic Transducer Of 75KHz Ultrasonic Plastic level sensor

Features:

1) Rugged sealed construction

2) Cylindrical design allows for installation in various applications



Specifications:

Best Operating Frequency : 75 KHz+/- 5%
Min. Transmit Sensitivity: 111dB re 1 μPa/V at 1m
at best transmit frequency Min. Receive Sensitivity: -162 dB re 1V/μPa
at best receive frequency Min. Parallel Resistance: 170Ω +/- 30%
Minimum sensor range: 20cm
Maximum sensor range: 10m
Free (1kHz) Capacitance: 2450pF +/- 15%
Beam width (-3dB full angle): 15° +/- 2°
Maximum Driving Voltage:

1000Vpp

(2% duty cycle tone burst)

Operating Temperature: -20° C to 70°C
Waterproof standard: IP65
Weight : 40g



Materials:

Housing: Glass filled polyester

Acoustic Window: Glass reinforced epoxy



All specifications typical at 22° C and subject

to change without notice.

Pulse-Echo Mode

Actual range may vary , depending on drive

Circuitry and signal processing



Applications:

. Level measurement

. Automation control

. Proximity

. Obstacle avoidance

. Robotics
