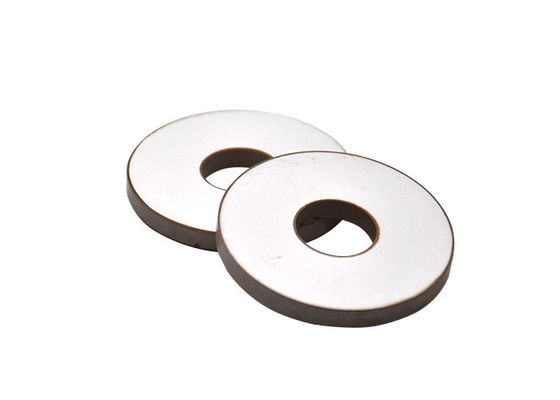

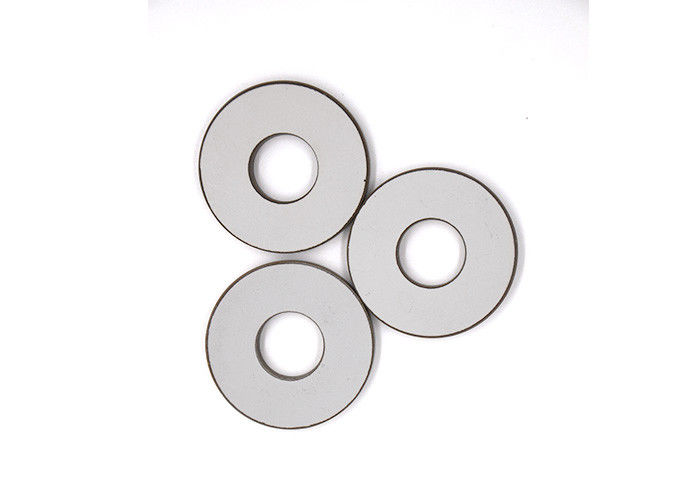

800w P81 50mm PZT Ceramic Ring For Ultrasonic Mask

800w P81 50mm PZT Ceramic Ring For Ultrasonic Mask

800w P81 50mm PZT Ceramic Ring For Ultrasonic Mask
800w P81 50mm PZT Ceramic Ring For Ultrasonic Mask 800w P81 50mm PZT Ceramic Ring For Ultrasonic Mask

Large Image :  800w P81 50mm PZT Ceramic Ring For Ultrasonic Mask Get Best Price

Product Details:

Place of Origin: Jiangsu, China
Brand Name: YUJIE
Certification: ISO9001
Model Number: HJ-5006

Payment & Shipping Terms:

Minimum Order Quantity: 100 Piece/Pieces
Price: Negotiable
Packaging Details: Carton 100pcs/Box 8.15/kg
Delivery Time: 3~30 working days
Payment Terms: T/T, Western Union
Supply Ability: 30000 Piece/Pieces per Month
Detailed Product Description
Type: Piezoelectric Ceramics Material: PZT 81
O.D.: 50mm I.D.: 17mm
Th.: 6mm Power: 800w
Port: Shenzhen
High Light:

P81 PZT Ceramic Ring

,

50mm PZT Ceramic Ring

,

800w Piezoelectric Ceramics Ring

P81 Dia.50mm Piezoelectric Ceramic Ring For Ultrasonic Mask / Drilling Machine



1. Product description



Piezoelectricity is a type of electricity that occurs when materials possessing piezoelectric properties are exposed to pressure or stress. Examples of these materials are ceramics, also called piezoceramics , and crystals.

Piezoelectric Ceramics (piezoceramics), such as Piezoelectric Ceramic Ring, Piezoelectric Ceramic Disc, Piezoelectric Ceramic Tube, Piezoelectric Ceramic Ball/Hemisphere, Piezoelectric Ceramic Cylinder and Piezoelectric Ceramic Square/Rectangular.



2. Brief description of piezo ceramic element & Attributive Characters

1. Electrode form/ Modulating: External drive (diode); Self drive (transistor);
2. Thickness: Thick (T>0.5mm); Standard (0.5mm>T>0.2mm);
3. Dimension: Smallest diameter is 5mm, Biggest is 100mm;
4. Metal plate type: Silver
5. Connection terminal: Solder wire or not.





3. Applications for ceramics



Piezo Ceramic Element: Applications (Piezoceramics element; Piezo diaphragm, piezo plate)

1. For sound making:Clocks,Calculators,Telephones,Washing machines,Various(Burglar alarms,etc);
2. For transduction: Embryo monitor,Heart reflectoscope reflector,pedometer, car alarm sensor.

3. For face lift beauty devices.

4. For medical devices.

5. For distance measuring.

6.Hydrophone

7.Oceanography



Specifications:



Dimension:  OD:50mm x ID:17mm x Thi: 6mm
Material:  P81
Capacitance:   2800 pF± 15%
Frequency:   45 Khz± 5%
Zr: <30Ω

Coupling Factor (KP)

>45%

Dielectric loss (tgδ)

<1%





Applications:

Welding machine

Drilling machine

Face mask machine
