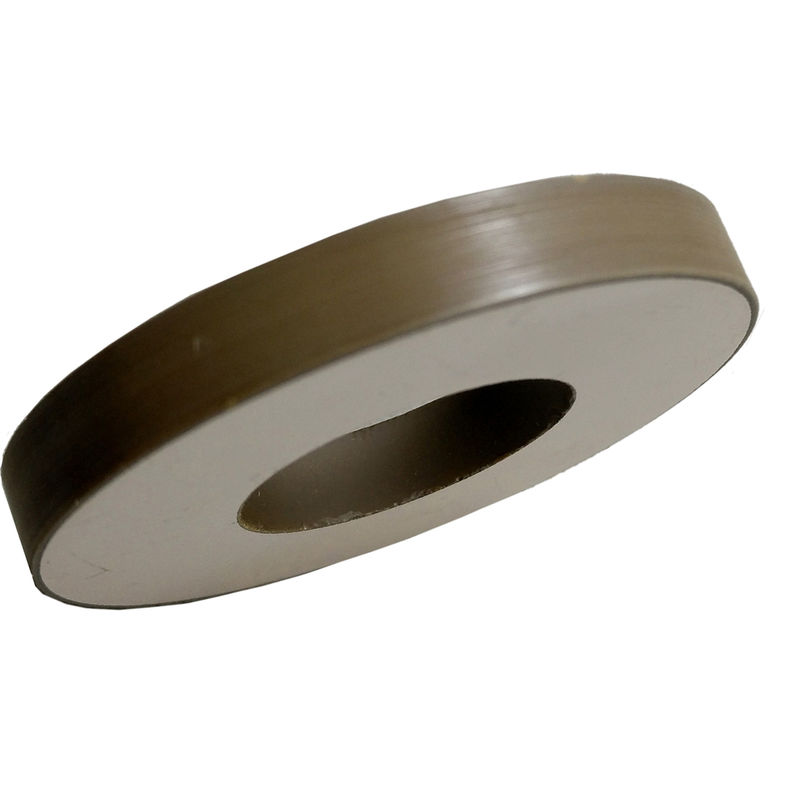

Diameter 35mm Piezo Ceramic Ring High Durability For Cleaning Transducer

Diameter 35mm Piezo Ceramic Ring High Durability For Cleaning Transducer

Diameter 35mm Piezo Ceramic Ring High Durability For Cleaning Transducer
Diameter 35mm Piezo Ceramic Ring High Durability For Cleaning Transducer

Large Image :  Diameter 35mm Piezo Ceramic Ring High Durability For Cleaning Transducer Get Best Price

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Yujie
Certification: ISO9001
Model Number: 35/15x5mm

Payment & Shipping Terms:

Minimum Order Quantity: 100 Piece/Pieces
Price: $3.50 - $6.00 / Piece
Packaging Details: Carton #: 38x32x18cm
Delivery Time: 3~30 working days
Payment Terms: T/T, Western Union
Supply Ability: 30000 Piece/Pieces per Month
Detailed Product Description
Material: PZT Type: Piezoelectric Ceramics
Raw Material: P81 Port: Shenzhen
High Light:

piezo ceramic ring

,

piezoelectric ceramic ring

Piezo Ring With Diamter 35mm Piezoelectric Ceramic For Cleaning Transducer



1. Product description



Piezoelectricity is a type of electricity that occurs when materials possessing piezoelectric properties are exposed to pressure or stress. Examples of these materials are ceramics, also called piezoceramics , and crystals.

Piezoelectric Ceramics (piezoceramics), such as Piezoelectric Ceramic Ring, Piezoelectric Ceramic Disc, Piezoelectric Ceramic Tube, Piezoelectric Ceramic Ball/Hemisphere, Piezoelectric Ceramic Cylinder and Piezoelectric Ceramic Square/Rectangular.



2. Brief description of piezo ceramic element & Attributive Characters

1. Electrode form/ Modulating: External drive (diode); Self drive (transistor);
2. Thickness: Thick (T>0.5mm); Standard (0.5mm>T>0.2mm);
3. Dimension: Smallest diameter is 5mm, Biggest is 100mm;
4. Metal plate type: Silver
5. Connection terminal: Solder wire or not.





3. Applications for ceramics



Piezo Ceramic Element: Applications (Piezoceramics element; Piezo diaphragm, piezo plate)

1. For sound making:Clocks,Calculators,Telephones,Washing machines,Various(Burglar alarms,etc);
2. For transduction: Embryo monitor,Heart reflectoscope reflector,pedometer, car alarm sensor.

3. For face lift beauty devices.

4. For medical devices.

5. For distance measuring.

6.Hydrophone

7.Oceanography



SPECIFICATIONS

          Piezoelectric Ceramic Element



Electrical Characteristics:
Unit:mm Tolerance: ± 0.2mm
Dimension: 35x15x5mm
Piezoelectric material : P-81
Resonant Frequency : 46KHZ ± 5%
Resonant Resistance (R): <25ohm
Coupling Factor (Kr) : >45%
Capacitance (Cp): 1400 PF ± 15%
Dielectric loss (tgδ) : < 1%



We can provide high quality and high performance product to customer

and according to customer requested to customise different dimension

and shape.  welcome your telephone and mail please don't hesitate to ask us .
