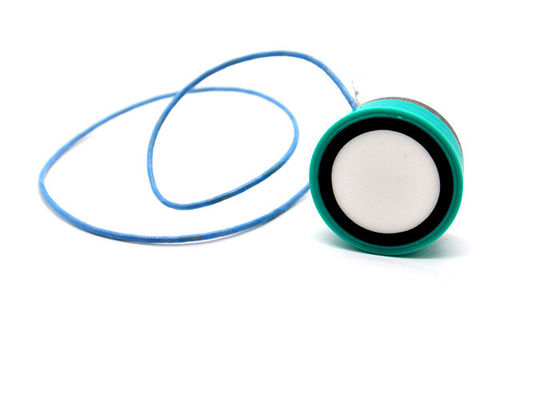

Level Measurement 180KHz PBT Waterproof Ultrasonic Sensor

Level Measurement 180KHz PBT Waterproof Ultrasonic Sensor

Level Measurement 180KHz PBT Waterproof Ultrasonic Sensor
Level Measurement 180KHz PBT Waterproof Ultrasonic Sensor

Large Image :  Level Measurement 180KHz PBT Waterproof Ultrasonic Sensor Get Best Price

Product Details:

Place of Origin: China
Brand Name: Yujie
Certification: ISO9001
Model Number: KQ180KH-1

Payment & Shipping Terms:

Minimum Order Quantity: 50 Piece/Pieces
Price: Negotiable
Packaging Details: carton 22x22x18cm
Delivery Time: 3~20 days
Payment Terms: Western Union, T/T
Supply Ability: 10000 Piece/Pieces per Month
Detailed Product Description
Frequency: 180khz Housing Material: PBT
Diameter: 28mm Height: 12.2mm
Application: For Level Measurement Port: Shenzhen
High Light:

PBT Waterproof Ultrasonic Sensor

,

180KHz Waterproof Ultrasonic Sensor

,

28mm Ultrasonic Level Measurement Sensor

PBT Housing Ultrasonic Level Sensor , 180KHz Ultrasonic Waterproof Sensor


Features:

1) Rugged sealed construction

2) Cylindrical design allows for installation in various applications



Specifications:

Model KQ180KH -1
Resonance frequency(kHz) 180KHZ±4%
Bandwidth(-6dB) >100 mv

General sensitivity

0 dB=250 Vp-p; Period:50; Distance:30cm

0.10—2M
Detection range <0.10M
Launch wave beam angle(-3dBFull-angle) 7±1°
Static capacitance 450PF±20%
Minimum parallel impedance 350Ω±30%

Max operation voltage

Pulse(duty-cycle 2%)

<500V
Operation temperature -20~70℃
Protection level IP65
Housing material PBT





Level Measurement 180KHz PBT Waterproof Ultrasonic Sensor 0



All specification taken typical at 25℃



Applications:

. Level measurement

. Automation control

. Proximity

. Obstacle avoidance

. Robotics





Admittance curve

Level Measurement 180KHz PBT Waterproof Ultrasonic Sensor 1





Sensitivity Test

Transmitting voltage: 250Vp-p; Period: 50; Distance: 30cm



Level Measurement 180KHz PBT Waterproof Ultrasonic Sensor 2







Angle of direction curve

Level Measurement 180KHz PBT Waterproof Ultrasonic Sensor 3
