Product Details:
Payment & Shipping Terms:
|
| Theory: | Ultrasonic Sensor | Usage: | Oil Level Measure |
|---|---|---|---|
| Frequency: | 1Mhz | Port: | Shenzhen |
| High Light: | ultrasonic type level sensor,ultrasonic oil level sensor |
||

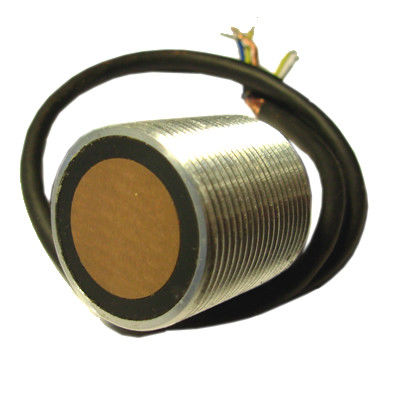

Ultrasonic Level Sensor 1Mhz Oil Level Transducer Used Under The Stainless Steel tank
Specifications:
|
Model |
HJ-3030/1M
|
|
Frequency(kHz) |
1MHZ±2% |
|
Bandwidth (-6dB) |
6% |
|
General sensitivity 0 dB=3 Vp-p;Period:8;Distance:7cm |
-26dB min |
|
Detection distance |
2M |
|
Blind zone |
5cm |
|
Beam width(-3dB full angle) |
6° |
|
Static capacitance |
1200PF±20% |
|
Min. parallel resistance |
250Ω±30% |
|
Max. driving Voltage(2% duty cycle tone burst) |
<500V |
|
Operating temperature |
-20~70℃ |
|
Protection/waterproof level |
IP65 |
|
Housing material |
Aluminum alloy |
