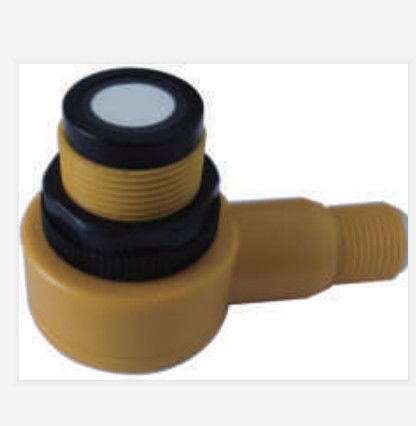

High Accuracy Ultrasonic Sensor Level Measurement With Pipe PVC Housing
Highlights
| Technical data | |
| General Specifications | |
| Sensing distance | 100…1000mm |
| Adjustment range | 100…1000mm |
| Unusable area | 0…80mm |
| Standard target plate | 100mm×100mm |
| Transducer frequency | |
| Response delay | About 195ms |
| Indicators/Operating means | |
| LED blue | Power on |
| LED yellow | Flashing:program function object detected |
| LED red | permanently red: Error Red,flashing:object not detected |
| Electrical specifications | |
| Operating voltage UB |
10 … 30 V DC
4.2 … 5.5 V DC
|
| No-load supply current | ≤20mA |
| Electrical Interface | M12-4PIN |
|
Dimensions
|
M18 X 33 |
| Output | |
| Output type |
1 switching PNP output
1 analog output
(current or voltage)
1 digital output
(RS232/485 or UART
TTL)
|
| Rated operational current | 200mA,short-circuit/overload protected |
| Default setting | 80mm----0V/4mA, 2000mm----10V/20mA |
| Voltage drop | ≤ 3V |
| Repeat accuracy | ≤ 1% |
| Switching frequency f | ≤ 4HZ |
| Range hysteresis H | 1% of the set operating distance |
| Temperature influence | ± 1.5% of full-scale value |
| Ambient conditions | |
| Ambient temperature |
-40°C to 70°C
|
| Storage temperature | -40…85℃(233...358K) |
| Mechanical specifications | |
| Protection grade | IP65 |
| Connection | V1 connector(M12×1),4-pin |
| Material Housing | PVC |
| Transducer |
epoxy resin/hollow glass sphere mixture; foam polyurethane,cover PBT |
|
configuration
|
Command(digital output)
|
|
Electrical Interface
|
M12-4PIN
|
| Standard conformity |
EN 60947-5-2:2007 IEC 60947-5-2:2007 |
Installation conditions
If the sensor is installed at the environment temperature fall below 0℃,It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.
