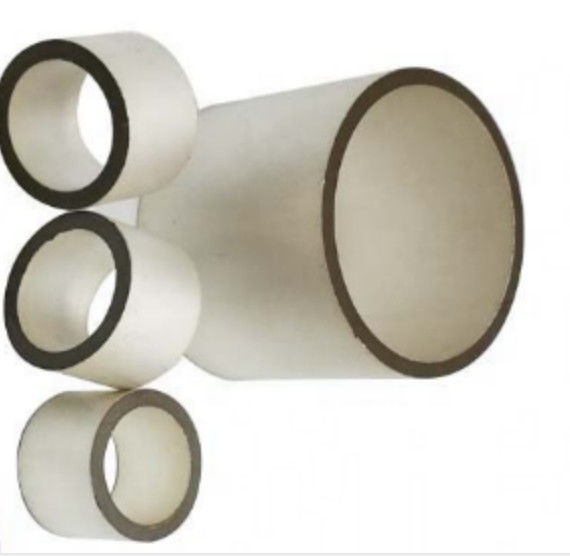

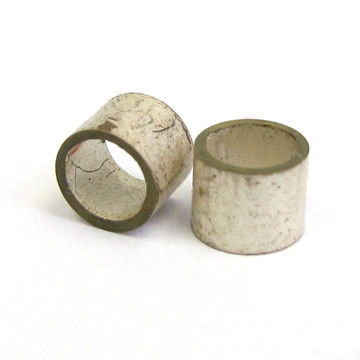

High Precision Piezoceramic Cylinder 43.5x37.2x25.25mm Long Service Life

High Precision Piezoceramic Cylinder 43.5x37.2x25.25mm Long Service Life

large.img.alt
small.img.alt small.img.alt

Large Image :  High Precision Piezoceramic Cylinder 43.5x37.2x25.25mm Long Service Life Get Best Price

Product Details:

Place of Origin: China
Brand Name: Yujie
Certification: ISO9001
Model Number: 43.5/37.2X25.25

Payment & Shipping Terms:

Minimum Order Quantity: 10 Piece/Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3~30 working days
Payment Terms: T/T, Western Union
Supply Ability: 1000 Piece/Pieces per Month
Detailed Product Description
Material: Lead Zirconate Titanate,P44 Type: Piezoelectric Ceramics
Frequency: 25KHZ Port: Shenzhen
High Light:

piezoelectric ceramic tube

,

piezoelectric ceramic cylinder

Piezoelectric Tube 43.5/37.2X25.25 For Ultrasonic Hydrophone


1. Product description



Piezoelectricity is a type of electricity that occurs when materials possessing piezoelectric properties are exposed to pressure or stress. Examples of these materials are ceramics, also called piezoceramics , and crystals.

Piezoelectric Ceramics (piezoceramics), such as Piezoelectric Ceramic Ring, Piezoelectric Ceramic Disc, Piezoelectric Ceramic Tube, Piezoelectric Ceramic Ball/Hemisphere, Piezoelectric Ceramic Cylinder and Piezoelectric Ceramic Square/Rectangular.



2. Brief description of piezo ceramic element & Attributive Characters

1. Electrode form/ Modulating: External drive (diode); Self drive (transistor);
2. Thickness: Thick (T>0.5mm); Standard (0.5mm>T>0.2mm);
3. Dimension: Smallest diameter is 5mm, Biggest is 100mm;
4. Metal plate type: Silver
5. Connection terminal: Solder wire or not.





3. Applications for ceramics



Piezo Ceramic Element: Applications (Piezoceramics element; Piezo diaphragm, piezo plate)

1. For sound making:Clocks,Calculators,Telephones,Washing machines,Various(Burglar alarms,etc);
2. For transduction: Embryo monitor,Heart reflectoscope reflector,pedometer, car alarm sensor.

3. For face lift beauty devices.

4. For medical devices.

5. For distance measuring.

6. Hydrophone

7. Oceanography


Specifications:

Dimension: 43.5x37.2x25.25 mm
Piezoelectric material : P-44B
Resonant Frequency : 25KHz ± 5%
Coupling Factor (KP) : >50%
Capacitance (Cp): 13000 PF ± 20%
Dielectric loss (tgδ): < 1%
Resonant Resistance (R) : < 30 ohm





Applications:


Hydrophone



We can offer high quality and high performance to customer.

As also can according to customer requested to customise different dimension and configuration if interested in our product please don't hesitate to contact us
