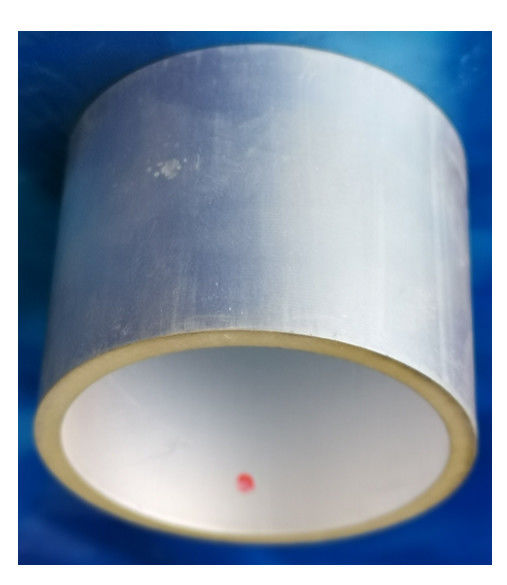

Durable Piezo Tube Ø8xØ6x8mm 120KHz Resonant Frequency Low Dielectric Loss

Durable Piezo Tube Ø8xØ6x8mm 120KHz Resonant Frequency Low Dielectric Loss

Durable Piezo Tube Ø8xØ6x8mm 120KHz Resonant Frequency Low Dielectric Loss
Durable Piezo Tube Ø8xØ6x8mm 120KHz Resonant Frequency Low Dielectric Loss Durable Piezo Tube Ø8xØ6x8mm 120KHz Resonant Frequency Low Dielectric Loss

Large Image :  Durable Piezo Tube Ø8xØ6x8mm 120KHz Resonant Frequency Low Dielectric Loss Get Best Price

Product Details:

Place of Origin: China
Brand Name: Yujie
Certification: ISO9001
Model Number: Ø8/Ø6 x8

Payment & Shipping Terms:

Minimum Order Quantity: 100 Piece/Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3~30 working days
Payment Terms: T/T, Western Union
Supply Ability: 4000 Piece/Pieces per Month
Detailed Product Description
Type: Piezoelectric Ceramics Material: P51
Frequency: 120KHz Port: Shenzhen
High Light:

piezoceramic tube

,

piezoelectric ceramic tube

Piezoelectric Tube Ø8/Ø6 x8 PZT Ceramic Cylinder For Measurement Acoustic Source





1. Product description



Piezoelectricity is a type of electricity that occurs when materials possessing piezoelectric properties are exposed to pressure or stress. Examples of these materials are ceramics, also called piezoceramics , and crystals.

Piezoelectric Ceramics (piezoceramics), such as Piezoelectric Ceramic Ring, Piezoelectric Ceramic Disc, Piezoelectric Ceramic Tube, Piezoelectric Ceramic Ball/Hemisphere, Piezoelectric Ceramic Cylinder and Piezoelectric Ceramic Square/Rectangular.



2. Brief description of piezo ceramic element & Attributive Characters

1. Electrode form/ Modulating: External drive (diode); Self drive (transistor);
2. Thickness: Thick (T>0.5mm); Standard (0.5mm>T>0.2mm);
3. Dimension: Smallest diameter is 5mm, Biggest is 100mm;
4. Metal plate type: Silver
5. Connection terminal: Solder wire or not.





3. Applications for ceramics



Piezo Ceramic Element: Applications (Piezoceramics element; Piezo diaphragm, piezo plate)

1. For sound making:Clocks,Calculators,Telephones,Washing machines,Various(Burglar alarms,etc);
2. For transduction: Embryo monitor,Heart reflectoscope reflector,pedometer, car alarm sensor.

3. For face lift beauty devices.

4. For medical devices.

5. For distance measuring.

6. Hydrophone

7. Oceanography



Specifications:

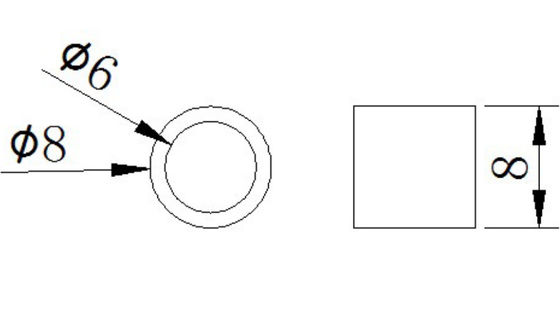

Dimension: Ø8/Ø6 x8 mm
Piezoelectric material : P-51
Resonant Frequency : 120 KHz ± 5%
Coupling Factor (KP) : >20%
Capacitance (Cp): 3500 PF ± 20%
Dielectric loss (tgδ): < 2%
Resonant Resistance (R) : < 110 ohm





Applications:

Measurement sound source

Receiving sound source



We can according to customer requested to process the different dimension and

configuration.
