KQ-112KH Ultrasonic Transducer — 112kHz Frequency for Automation and Robotics

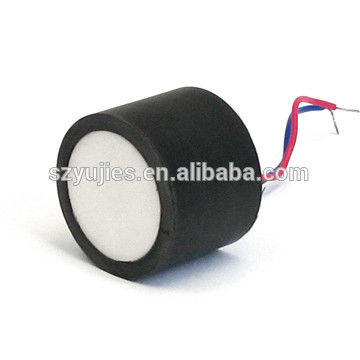

Large Image : KQ-112KH Ultrasonic Transducer — 112kHz Frequency for Automation and Robotics Get Best Price

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Yujie
Certification:	ISO9001
Model Number:	KQ200KH-6

Payment & Shipping Terms:

Minimum Order Quantity:	10000 Pieces (100 lot)
Price:	Negotiable
Packaging Details:	Carton #: 22x22x18cm
Delivery Time:	3~30 working days
Payment Terms:	T/T,Western Union
Supply Ability:	5000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Theory:	Ultrasonic Sensor	Usage:	Level Sensor
Frequency:	200khz	Housing Material:	Plastic
Diameter:	26mm	Height:	20mm
Application:	For Level Measurement	Selling Units:	Single Item
Single Package Size :	22X22X10 Cm	Single Gross Weight:	1.0 Kg
Product Name:	Ultrasonic Level Sensor	Terminal Port:	2 Cables
Highlight:	112kHz ultrasonic transducer , automation ultrasonic distance sensor , robotics frequency transducer

Product Overview

The YUJIE KQ-112KH ultrasonic transducer operates at 112kHz and combines transmit and receive sensitivity in a compact cylindrical package. With IP65 sealing, 7-meter range, and robust -20°C to 70°C operating window, it integrates into automation control systems, robotics platforms, and proximity detection setups without demanding complex environmental management.

Technical Specifications

Parameter	Specification
Operating Frequency	112kHz ± 4%
Detection Range	15cm ~ 7m (Pulse-Echo Mode)
Min. Transmit Sensitivity	107dB re 1μPa/V at 1m
Min. Receive Sensitivity	-170dB re 1V/μPa
Parallel Resistance	420Ω ± 30%
Free (1kHz) Capacitance	1000pF ± 200pF
Beam Width (-3dB)	12° ± 2° (full angle)
Max Driving Voltage	800Vpp (2% duty cycle tone burst)
Operating Temperature	-20°C to 70°C
Waterproof Rating	IP65
Weight	14g
Housing Material	Glass filled polyester

Key Benefits

Transmit & Receive in One Unit — High transmit sensitivity of 107dB paired with -170dB receive sensitivity enables reliable detection across the full 15cm to 7m range
Automation-Ready 112kHz — Operating frequency chosen for compatibility with common industrial drive circuits and signal processing routines
Robotics Integration — Compact cylindrical form factor at 14g mounts easily in robotics frames; IP65 rating handles workshop dust and occasional washdown
800Vpp Drive Compatibility — Handles standard industrial drive levels (2% duty cycle tone burst) without requiring specialized high-voltage circuitry
Signal Processing Friendly — 1000pF capacitance and 420Ω resistance values align with typical microcontroller ADC and timer-based measurement approaches

Applications
