Industrial 800Vp-p Voltage High Frequency Transmitter with -170 DB Sensitivity and IP65 Waterproof Standard

Industrial 800Vp-p Voltage High Frequency Transmitter with -170 DB Sensitivity and IP65 Waterproof Standard

Industrial 800Vp-p Voltage High Frequency Transmitter with -170 DB Sensitivity and IP65 Waterproof Standard
Industrial 800Vp-p Voltage High Frequency Transmitter with -170 DB Sensitivity and IP65 Waterproof Standard

Large Image :  Industrial 800Vp-p Voltage High Frequency Transmitter with -170 DB Sensitivity and IP65 Waterproof Standard Get Best Price

Product Details:

Place of Origin: CN
Brand Name: Yujie
Model Number: KQ-112KHz

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: Negotiate
Packaging Details: Carton #: 38x32x18cm
Payment Terms: Western Union, T/T
Detailed Product Description
Maximum Sensor Range: 7m Material: Ceramic,matching Layer,plastic/metal Housing,
Storage Temperature: -20℃~+70℃ Minimum Sensor Range: 15cm
Operating Temperature: 20℃~+70℃ Waterproof Standard: IP65
Voltage: 800Vp-p Resonant Frequency: 112kHz+/-5%
High Light:

Industrial High Frequency Transmitter

,

800Vp-p High Frequency Transmitter

,

IP65 Waterproof High Frequency Transmitter

Product Description:

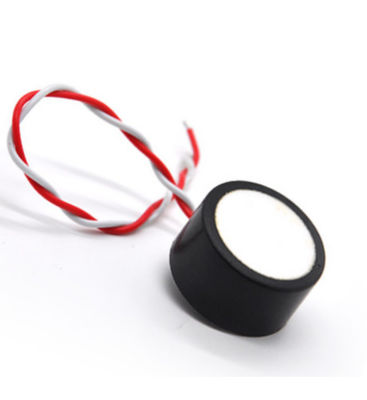

PZT Ultrasonic Transducer is a high frequency and high voltage transmitter which utilizes the Piezoelectric Ultrasonic Transducer technology. It is designed to generate ultrasonic waves with a frequency range of 112kHz +/- 5% and a voltage of 800Vp-p, and is suitable for a wide range of applications. The PZT Ultrasonic Transducer has a wide temperature range of -20℃ to 70℃, and a humidity range of 20% to 90% RH, which make it suitable for use in a variety of different environments. It is a reliable device that provides accurate and consistent performance. Furthermore, its small size and lightweight structure make it easy to operate and install. The PZT Ultrasonic Transducer is a great choice for anyone looking for a reliable and efficient high frequency and high voltage transmitter.



Features:

  • Product Name: PZT Ultrasonic Transducer
  • Temperature Range: -20℃~+70℃
  • Material: Ceramic,matching Layer,plastic/metal Housing
  • Minimum sensor range: 15cm
  • Voltage: 800Vp-p
  • Capacitance: 1000pF+/-20%
  • High Frequency Transmitter
  • High Frequency Receiver


Technical Parameters:

Parameter Specification
Humidity Range 20%~90%RH
Resonant Frequency 112kHz+/-5%
Frequency Range 112kHz+/-5%
Maximum sensor range 7m
Capacitance 1000pF+/-20%
Voltage 800Vp-p
Operating Temperature 20℃~+70℃
Material Ceramic, matching Layer, plastic/metal Housing,
Waterproof standard IP65
Minimum sensor range 15cm


Applications:

The PZT Ultrasonic Transducer from Yujie is a high frequency transmitter with model number KQ-112KHz. It is made of ceramic, matching layer, plastic/metal housing and has a wide frequency range of 112kHz+/-5%. It has a humidity range of 20%~90%RH and a minimum parallel resistance of 420Ω +/- 30%. It is designed to withstand high temperatures and pressures, and is suitable for applications in many industries. It is suitable for medical, automotive, aerospace, industrial and other fields. It is an excellent choice for high frequency applications such as medical imaging, sonar, and other applications. The PZT Ultrasonic Transducer from Yujie is a reliable and durable product that is sure to meet your needs.



Customization:

Yujie PZT Ultrasonic Transducer is a high frequency transmitter which is designed for a wide range of applications. It has a waterproof standard of IP65 and a storage temperature of -20℃~+70℃. The Model Number of this product is KQ-112KHz, the Sensitivity is 107dB For Transmitting, -170 DB For Receiving, and the Impedance is Min. Parallel Resistance: 420Ω +/- 30%. The Humidity Range is 20%~90%RH. This high frequency transmitter is the perfect choice for those who are looking for a reliable and high-performance product that is able to deliver great results.



Packing and Shipping:

PZT Ultrasonic Transducer Packaging and Shipping

We will package and ship each PZT Ultrasonic Transducer in a secure and reliable manner to ensure it arrives in perfect condition. Each unit will be carefully and securely wrapped in air cushion wrap or placed in a custom-made box. We will also use packing peanuts to make sure the unit is secure and protected during transit.

For shipping, we use a variety of trusted carriers to ensure your PZT Ultrasonic Transducer arrives on time and in perfect condition. We use standard and expedited shipping to accommodate your needs. We also offer international shipping for customers located outside the United States.



FAQ:

Q1: What is the brand name of the PZT Ultrasonic Transducer?

A1: The brand name of the PZT Ultrasonic Transducer is Yujie.

Q2: What is the model number of the PZT Ultrasonic Transducer?

A2: The model number of the PZT Ultrasonic Transducer is KQ-112KHz.

Q3: Where was the PZT Ultrasonic Transducer made?

A3: The PZT Ultrasonic Transducer was made in China.

Q4: What is the frequency range of the PZT Ultrasonic Transducer?

A4: The frequency range of the PZT Ultrasonic Transducer is 5kHz to 200kHz.

Q5: What is the operating temperature range of the PZT Ultrasonic Transducer?

A5: The operating temperature range of the PZT Ultrasonic Transducer is -40°C to 85°C.
