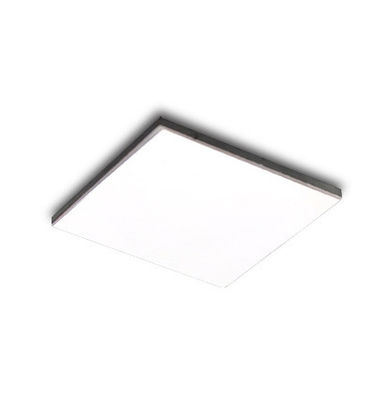

5700pF PZT Cubed Piezoelectric Ceramic 32KHz 50x20x1MHz For Hydrophone

5700pF PZT Cubed Piezoelectric Ceramic 32KHz 50x20x1MHz For Hydrophone

5700pF PZT Cubed Piezoelectric Ceramic 32KHz 50x20x1MHz For Hydrophone
5700pF PZT Cubed Piezoelectric Ceramic 32KHz 50x20x1MHz For Hydrophone

Large Image :  5700pF PZT Cubed Piezoelectric Ceramic 32KHz 50x20x1MHz For Hydrophone Get Best Price

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Yujie
Certification: ISO9001
Model Number: 50x20x2

Payment & Shipping Terms:

Minimum Order Quantity: 100 Piece/Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3~30 working days
Payment Terms: T/T, Western Union
Supply Ability: 1000 Piece/Pieces per Month
Detailed Product Description
Type: Piezoelectric Ceramics Rectangle Material: P44
Frequency: 32 KHz Capacitance: 5700pF
Port: Shenzhen Name: Ceramic PZT Element
High Light:

5700pF Piezoelectric Ceramic

,

PZT Cubed Piezoelectric Ceramic

,

32KHz Ceramic PZT Element

32 KHz 5700pF PZT Cubed Piezoelectric Ceramic 50x20x1MHz





Quick Details
Place of  Origin:Jiangsu  China
Brand Name:
Yujie
Model Number:
50x20x2
Type:
Piezoelectric Ceramics
Material:
Alumina-Zirconia, Ceramic
Application:
Ultrasonic Application
Product type:
Disc Piezo Ceramic Ring
MOQ:
50 PCS for ARS-YPJP8842 Piezoelectric Ceramic
Delivery Time:
Fast and Timely
Size:
Can Be Customized for Piezoelectric Ceramic
Shipping Terms:
DHL OR Fedex for Piezoelectric Ceramic
Shape:
disc,ring,rectangle etc
Warranty:
1 Year for Piezoelectric Ceramic

1. Product description



Piezoelectricity is a type of electricity that occurs when materials possessing piezoelectric properties are exposed to pressure or stress. Examples of these materials are ceramics, also called piezoceramics , and crystals.

Piezoelectric Ceramics (piezoceramics), such as Piezoelectric Ceramic Ring, Piezoelectric Ceramic Disc, Piezoelectric Ceramic Tube, Piezoelectric Ceramic Ball/Hemisphere, Piezoelectric Ceramic Cylinder and Piezoelectric Ceramic Square/Rectangular.



2. Brief description of piezo ceramic element & Attributive Characters

1. Electrode form/ Modulating: External drive (diode); Self drive (transistor);
2. Thickness: Thick (T>0.5mm); Standard (0.5mm>T>0.2mm);
3. Dimension: Smallest diameter is 5mm, Biggest is 100mm;
4. Metal plate type: Silver
5. Connection terminal: Solder wire or not.





3. Applications for ceramics



Piezo Ceramic Element: Applications (Piezoceramics element; Piezo diaphragm, piezo plate)

1. For sound making:Clocks,Calculators,Telephones,Washing machines,Various(Burglar alarms,etc);
2. For transduction: Embryo monitor,Heart reflectoscope reflector,pedometer, car alarm sensor.

3. For face lift beauty devices.

4. For medical devices.

5. For distance measuring.

6. Hydrophone

7. Oceanography



Specifications:

Material: P44
Capacitance: 5700pf +/-15%
Frequency: 32 Khz+/-5%, 1MHz+/-5%
Impedance: <40 Ω
K31: >25%
tgS <2%

Dimension:

Length: 50mm,Width: 20mm,Height: 2mm



We can offer high quality and high performance to customer.

As also can according to customer requested to customise different dimension and configuration if interested in our product please don't hesitate to contact us!
