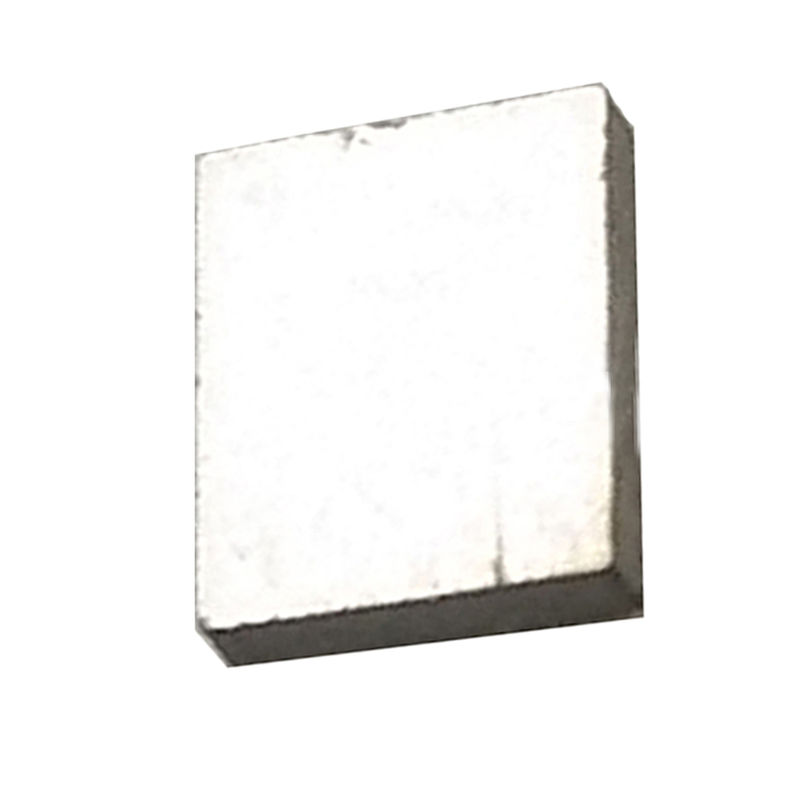

48KHz PZT Cube Piezoelectric Ceramics 14000pF 40x40x1mm

48KHz PZT Cube Piezoelectric Ceramics 14000pF 40x40x1mm

48KHz PZT Cube Piezoelectric Ceramics 14000pF 40x40x1mm
48KHz PZT Cube Piezoelectric Ceramics 14000pF 40x40x1mm

Large Image :  48KHz PZT Cube Piezoelectric Ceramics 14000pF 40x40x1mm Get Best Price

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Yujie
Certification: ISO9001
Model Number: 40x40x1

Payment & Shipping Terms:

Minimum Order Quantity: 100 Piece/Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3~30 working days
Payment Terms: T/T, Western Union
Supply Ability: 1000 Piece/Pieces per Month
Detailed Product Description
Type: Piezoelectric Ceramics Rectangle Material: P81
Frequency: 48 Khz Capacitance: 14000pF
Port: Shenzhen Name: Piezoelectric Ceramic Plate
High Light:

PZT Piezoelectric Ceramics

,

Cube Piezoelectric Ceramics

,

48KHz Piezoelectric Ceramic Plate

48KHz PZT Cube Piezoelectric Ceramic Plate 40x40x1mm



1. Product description



Piezoelectricity is a type of electricity that occurs when materials possessing piezoelectric properties are exposed to pressure or stress. Examples of these materials are ceramics, also called piezoceramics , and crystals.

Piezoelectric Ceramics (piezoceramics), such as Piezoelectric Ceramic Ring, Piezoelectric Ceramic Disc, Piezoelectric Ceramic Tube, Piezoelectric Ceramic Ball/Hemisphere, Piezoelectric Ceramic Cylinder and Piezoelectric Ceramic Square/Rectangular.



2. Brief description of piezo ceramic element & Attributive Characters

1. Electrode form/ Modulating: External drive (diode); Self drive (transistor);
2. Thickness: Thick (T>0.5mm); Standard (0.5mm>T>0.2mm);
3. Dimension: Smallest diameter is 5mm, Biggest is 100mm;
4. Metal plate type: Silver
5. Connection terminal: Solder wire or not.





3. Applications for ceramics



Piezo Ceramic Element: Applications (Piezoceramics element; Piezo diaphragm, piezo plate)

1. For sound making:Clocks,Calculators,Telephones,Washing machines,Various(Burglar alarms,etc);
2. For transduction: Embryo monitor,Heart reflectoscope reflector,pedometer, car alarm sensor.

3. For face lift beauty devices.

4. For medical devices.

5. For distance measuring.

6. Hydrophone

7. Oceanography





We can offer high quality and high performance to customer.

As also can according to customer requested to customise different dimension and configuration if interested in our product please don't hesitate to contact us!





Specifications:

Material: P81
Capacitance: 14000pf +/-15%
Frequency: 48 khz+/-5%
Impedance: <5 Ω
Kr: >45%
tgS <3%
Dimension: Length: 40mm,Width: 40mm,Height: 1mm



48KHz PZT Cube Piezoelectric Ceramics 14000pF 40x40x1mm 0
