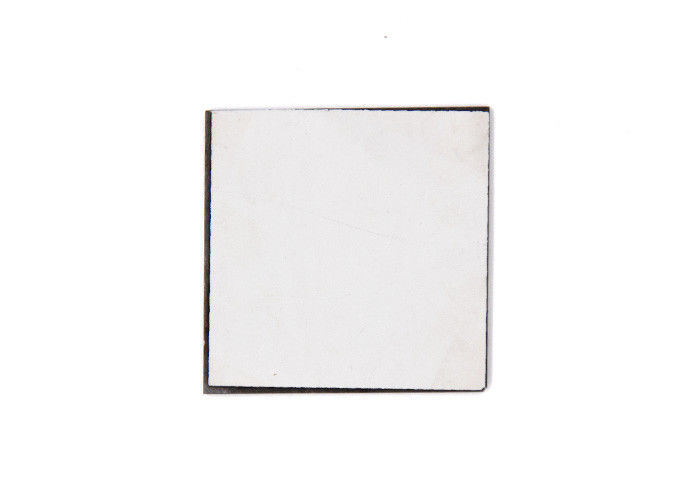

P33 9500pF 23KHz Piezoelectric Ceramics Plate 76.2x76.2x8.08mm

P33 9500pF 23KHz Piezoelectric Ceramics Plate 76.2x76.2x8.08mm

P33 9500pF 23KHz Piezoelectric Ceramics Plate 76.2x76.2x8.08mm
P33 9500pF 23KHz Piezoelectric Ceramics Plate 76.2x76.2x8.08mm

Large Image :  P33 9500pF 23KHz Piezoelectric Ceramics Plate 76.2x76.2x8.08mm Get Best Price

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Yujie
Certification: ISO9001
Model Number: 76x76x8

Payment & Shipping Terms:

Minimum Order Quantity: 100 Piece/Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3~30 working days
Payment Terms: T/T, Western Union
Supply Ability: 1000 Piece/Pieces per Month
Detailed Product Description
Type: Piezoelectric Ceramics Rectangle Material: P33
Frequency: 23 Khz Capacitance: 9500pF
Port: Shenzhen
High Light:

9500pF Piezoelectric Ceramics

,

23KHz Piezoelectric Ceramics

,

P33 Piezoelectric Ceramic Plate

P33 9500pF 23KHz Piezoelectric Ceramics 76.2x76.2x8.08mm



1. Product description



Piezoelectricity is a type of electricity that occurs when materials possessing piezoelectric properties are exposed to pressure or stress. Examples of these materials are ceramics, also called piezoceramics , and crystals.

Piezoelectric Ceramics (piezoceramics), such as Piezoelectric Ceramic Ring, Piezoelectric Ceramic Disc, Piezoelectric Ceramic Tube, Piezoelectric Ceramic Ball/Hemisphere, Piezoelectric Ceramic Cylinder and Piezoelectric Ceramic Square/Rectangular.



2. Brief description of piezo ceramic element & Attributive Characters

1. Electrode form/ Modulating: External drive (diode); Self drive (transistor);
2. Thickness: Thick (T>0.5mm); Standard (0.5mm>T>0.2mm);
3. Dimension: Smallest diameter is 5mm, Biggest is 100mm;
4. Metal plate type: Silver
5. Connection terminal: Solder wire or not.





3. Applications for ceramics



Piezo Ceramic Element: Applications (Piezoceramics element; Piezo diaphragm, piezo plate)

1. For sound making:Clocks,Calculators,Telephones,Washing machines,Various(Burglar alarms,etc);
2. For transduction: Embryo monitor,Heart reflectoscope reflector,pedometer, car alarm sensor.

3. For face lift beauty devices.

4. For medical devices.

5. For distance measuring.

6. Hydrophone

7. Oceanography



Specifications:

Material: P33
Capacitance: 9500pf +/-15%
Frequency: 23 khz+/-5%
Impedance: <100 Ω
Kr: >40%
tgS <3%

Dimension:

Length: 76.2mm,Width: 76.2mm,Height: 8.08mm



We can offer high quality and high performance to customer.

As also can according to customer requested to customise different dimension and configuration if interested in our product please don't hesitate to contact us!
