PVC Cable 100-2000mm 180kHz Ultrasonic Distance Sensor

PVC Cable 100-2000mm 180kHz Ultrasonic Distance Sensor
PVC Cable 100-2000mm 180kHz Ultrasonic Distance Sensor

Large Image :  PVC Cable 100-2000mm 180kHz Ultrasonic Distance Sensor Get Best Price

Product Details:

Place of Origin: CHINA
Brand Name: YUJIE
Certification: ISO9001
Model Number: UM2000-UN2-TTL

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton #: 49x29x29cm
Delivery Time: 3~30 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Accuracy: +/-10mm Frequency: 180 Khz
Material: PBT OR FRP Color: Yellow
Selling Units: Single Item Single Package Size : 29X29X25 Cm
Single Gross Weight: 70 G Package Type: Carton
High Light:

PVC Cable Ultrasonic Waterproof Sensor

,

180kHz Distance Measurement Sensor

High Accuracy Ultrasonic Distance Sensor Measurement Range 100…2000mm With PBT OR FRP Housing
 Highlights

TECH-IN
Temperature compensate
LED for status indication
Battery powered
Minmal dead bands

Applications

Liquid and Solid Level Measurement
Tanks,Totes,Processing
Bulk Material Management
Factory automation
Position Detection
Avoid collision

Ultrasonic sensor 　 UM2000-UN2-TTL
Technical data 　






General Specifications
Sensing distance 100…2000mm
Adjustment range 100…2000mm
Unusable area 0…100mm
Standard target plate 100mm×100mm
Transducer frequency About 180 kHz
Response delay About 125ms
Indicators/Operating means 　
LED yellow solid: NO LED
flash:
LED red flashing:
Electrical specifications





Operating voltage UB 10…30VDC ripple10%ss
No-load supply current ≤20mA
Output 　
Output type 1 digital output UART TTL
Resolution 　
Deviation of the characteristic
curve		 ±1% of full-scale value
Repeat accuracy ±0.1% of full-scale value
Load impedance >1k Ohm
Maximum switching current mA
Temperature influence ±1.5% of full-scale value
Ambient conditions 　
Ambient temperature -25…70℃
Storage temperature -40…85℃

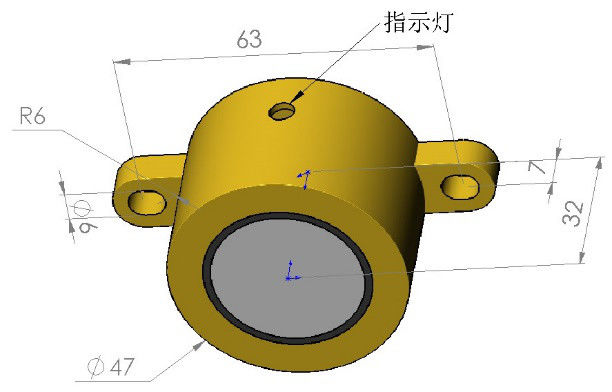

Mechanical specifications



Protection grade IP68
Connection PVC cable,4-CABLE
Material 　
Housing PBT OR FRP
Transducer Epoxy resin/hollow; Polyurethane foam 1 BN=BROWN
2 GN=GREEN
3 BU=BLUE
4 BK=BLACK
Weight 70g
Compliance with standards and Directives
Standard conformity EN 60947-5-2:2007
