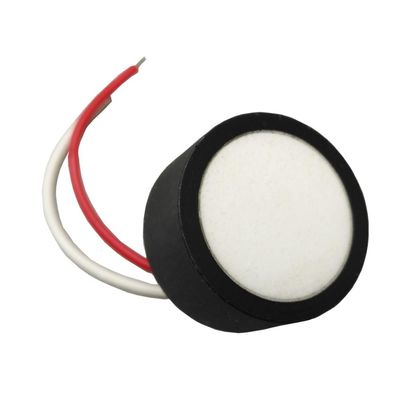

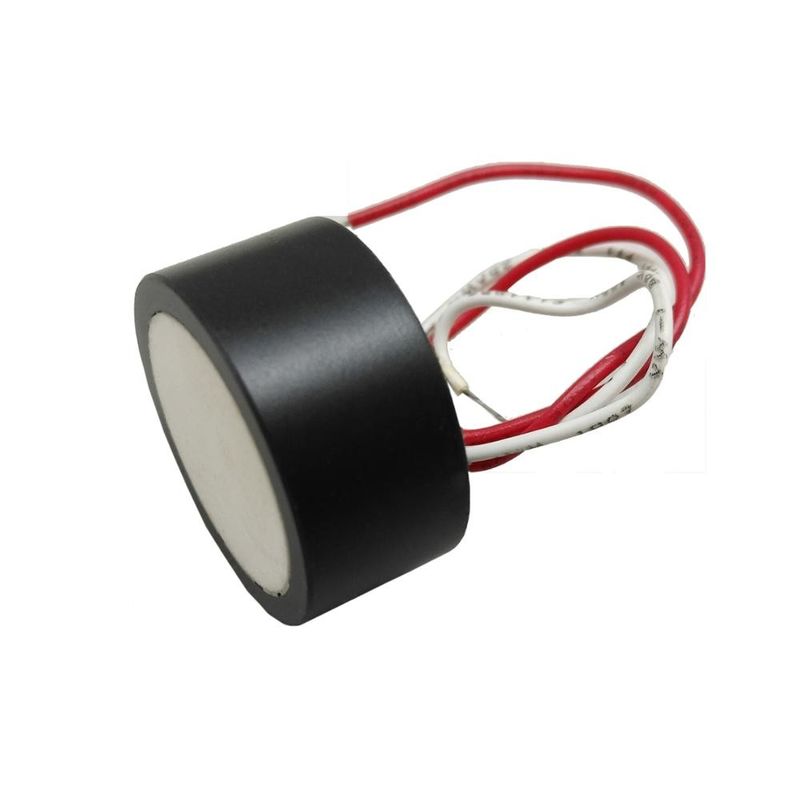

High Sensitivity Ultrasonic Distance Sensor , 112KHz Ultrasonic Distance Module

High Sensitivity Ultrasonic Distance Sensor , 112KHz Ultrasonic Distance Module

large.img.alt
small.img.alt small.img.alt

Large Image :  High Sensitivity Ultrasonic Distance Sensor , 112KHz Ultrasonic Distance Module Get Best Price

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Yujie
Certification: ISO9001
Model Number: KQ-112KH

Payment & Shipping Terms:

Minimum Order Quantity: 50 Piece/Pieces
Price: Negotiable
Packaging Details: Carton #: 29x29x25cm
Delivery Time: 3~30 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 Piece/Pieces per Month
Detailed Product Description
Theory: Ultrasonic Sensor Usage: Level Sensor
Frequency: 112khz Housing Material: Plastic
Diameter: 25mm Height: 12mm
Application: For Level Measurement Port: Shenzhen
High Light:

long distance ultrasonic sensor

,

ultrasound distance sensor

Ultrasonic Distance Sensor 112KHz Air Leve Sensor Ultrasonic Transducer



Features:

1) Rugged sealed construction

2) Cylindrical design allows for installation in various applications



Specifications:

Best Operating Frequency : 112kHz+/- 5%
Min. Transmit Sensitivity: 107 dB re 1 μPa/V at 1mat 1m at best transmit frequency
at best transmit frequency Min. Receive Sensitivity: -169 dB re 1V/μPa
at best receive frequency Min. Parallel Resistance: 420ohm ± 30%
Minimum sensor range: 15cm
Maximum sensor range: 7m
Free (1kHz) Capacitance: 1000pF +/- 15%
Beam width (-3dB full angle): 12° +/- 2°
Maximum Driving Voltage:

800Vpp

(2% duty cycle tone burst)

Operating Temperature: -20° C to 70°C
Waterproof standard: IP65
Weight : 14g



Applications:

. level measurement

. Automation control

. Proximity

. Obstacle avoidance

. Robotics
