Product Details:
Payment & Shipping Terms:
|
| Theory: | Ultrasonic Sensor | Usage: | Level Sensor |
|---|---|---|---|
| Frequency: | 400khz | Port: | Shenzhen |
| High Light: | long distance ultrasonic sensor,ultrasonic distance module |
||

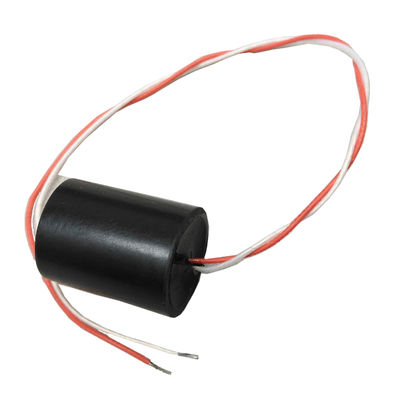

Ultrasonic Distance Sensor 400KHz Plastic Air Transducer For Fluel Level
Characteristics:
Solid Surface Capsulation(Aluminium Alloy)
simply assemble
| Model: | KQ-400KH |
| Frequency:(kHz) | 400KHZ |
| Width: | ±5% |
|
Sensitivity: 0 dB=18 Vp-p；Term:50；Range:10cm |
-74dB min |
| Detecting Range: | 0.08—0.3m |
| Dead Zone: | ＜0.03m |
| Transmitting Beam Angle(-3dB) | 7±2° |
| Capacitance: | 200PF±100PF |
| Minimum Parallel Impedance: | 200Ω±30% |
|
Maxmum Working Voltage Pulse (Duty Cycle 2%) |
＜500V |
| Working Temperature: | -20～70℃ |
| Protect Class: | IP65 |
| Dimension (Diameter x Height mm) | φ10×15.3 |
| Housing Material: | Aluminium Alloy |
| Cable length: | 0.6mm contact Pin |
| Weight: | 3g |
