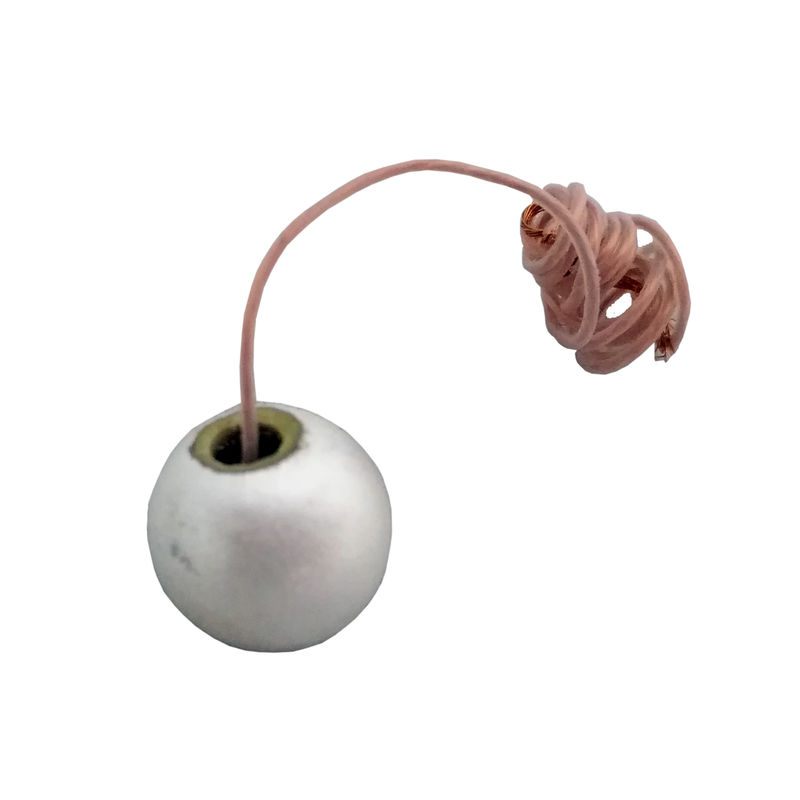

Sphere / Hemishere Piezoelectric Ceramics , Piezoceramic Element Diameter 10-50mm

Sphere / Hemishere Piezoelectric Ceramics , Piezoceramic Element Diameter 10-50mm

Sphere / Hemishere Piezoelectric Ceramics , Piezoceramic Element Diameter 10-50mm
Sphere / Hemishere Piezoelectric Ceramics , Piezoceramic Element Diameter 10-50mm

Large Image :  Sphere / Hemishere Piezoelectric Ceramics , Piezoceramic Element Diameter 10-50mm Get Best Price

Product Details:

Place of Origin: China
Brand Name: Yujie
Certification: ISO9001
Model Number: See product

Payment & Shipping Terms:

Minimum Order Quantity: 50 Piece/Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3~30 working days
Payment Terms: T/T, Western Union
Supply Ability: 1000 Piece/Pieces per Month
Detailed Product Description
Material: PZT Type: Piezoelectric Ceramics
Shape: Circular Port: Shenzhen
High Light:

piezoceramic element

,

piezoelectric ceramic element

Piezoelectric Ceramics Sphere/ Hemishere with Diameter 10~50mm

1. Product description



Piezoelectricity is a type of electricity that occurs when materials possessing piezoelectric properties are exposed to pressure or stress. Examples of these materials are ceramics, also called piezoceramics , and crystals.

Piezoelectric Ceramics (piezoceramics), such as Piezoelectric Ceramic Ring, Piezoelectric Ceramic Disc, Piezoelectric Ceramic Tube, Piezoelectric Ceramic Ball/Hemisphere, Piezoelectric Ceramic Cylinder and Piezoelectric Ceramic Square/Rectangular.



2. Brief description of piezo ceramic element & Attributive Characters

1. Electrode form/ Modulating: External drive (diode); Self drive (transistor);
2. Thickness: Thick (T>0.5mm); Standard (0.5mm>T>0.2mm);
3. Dimension: Smallest diameter is 5mm, Biggest is 100mm;
4. Metal plate type: Silver
5. Connection terminal: Solder wire or not.





3. Applications for ceramics



Piezo Ceramic Element: Applications (Piezoceramics element; Piezo diaphragm, piezo plate)

1. For sound making:Clocks,Calculators,Telephones,Washing machines,Various(Burglar alarms,etc);
2. For transduction: Embryo monitor,Heart reflectoscope reflector,pedometer, car alarm sensor.

3. For face lift beauty devices.

4. For medical devices.

5. For distance measuring.



Specifications:



Type & spec       External dimensionmm:
Length× width×thickness



technological parameter

spherical    diamete

open caliber

  wall thickness

fkHz

Kr

c (nf)

P-33

P-52

P-81





SΦ10

SΦ10

Φ3

0.8

160

0.4

4.7

8.8



      SΦ15             SΦ15

Φ4

1

113 0.4

9.2

17.3



SΦ20

SΦ20

Φ5

1~1.5

77

0.4

17.0

32.0



SΦ25

SΦ25

Φ5

1~1.5

61

0.4

17.4

32.8



SΦ30

SΦ30

Φ6

1.5~3

50

0.4

23.5

44.3



SΦ40

SΦ40

Φ7

2~4

38

0.4

34.3

64.6



SΦ50

SΦ50

Φ8

2~4

30

0.4

54.8

103.2



SR12.5

SR12.5

  Φ3.5

2~5

83



6.2



3.7

SR25

SR25

Φ8

2~5





26.2



15.6

SR37.5

SR37.5

Φ10

2~5









17.7

SR50

SR50

Φ12

3~6









25.5
