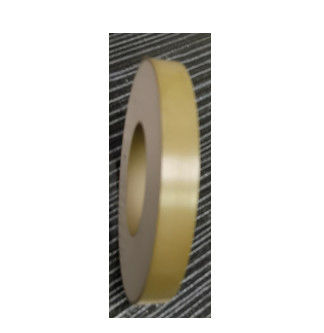

High Sensitivity Piezo Ring For Ultrasonic Mask / Drilling Machine

High Sensitivity Piezo Ring For Ultrasonic Mask / Drilling Machine

High Sensitivity Piezo Ring For Ultrasonic Mask / Drilling Machine
High Sensitivity Piezo Ring For Ultrasonic Mask / Drilling Machine High Sensitivity Piezo Ring For Ultrasonic Mask / Drilling Machine

Large Image :  High Sensitivity Piezo Ring For Ultrasonic Mask / Drilling Machine Get Best Price

Product Details:

Place of Origin: Jiangsu, China
Brand Name: YUJIE
Certification: ISO9001
Model Number: 25x10x5

Payment & Shipping Terms:

Minimum Order Quantity: 100 Piece/Pieces
Price: Negotiable
Packaging Details: Carton 100pcs/Box 8.15/kg
Delivery Time: 3~30 working days
Payment Terms: T/T, Western Union
Supply Ability: 30000 Piece/Pieces per Month
Detailed Product Description
Material: PZT81 Type: Piezoelectric Ceramics
Application: Welding, Mask Transducer Port: Shenzhen
High Light:

piezoelectric ring

,

piezoceramic ring

Ultrasonic Welding Transducer Of 25mm For Ultrasonic Mask/ Drilling Machine



1. Product description



Piezoelectricity is a type of electricity that occurs when materials possessing piezoelectric properties are exposed to pressure or stress. Examples of these materials are ceramics, also called piezoceramics , and crystals.

Piezoelectric Ceramics (piezoceramics), such as Piezoelectric Ceramic Ring, Piezoelectric Ceramic Disc, Piezoelectric Ceramic Tube, Piezoelectric Ceramic Ball/Hemisphere, Piezoelectric Ceramic Cylinder and Piezoelectric Ceramic Square/Rectangular.



2. Brief description of piezo ceramic element & Attributive Characters

1. Electrode form/ Modulating: External drive (diode); Self drive (transistor);
2. Thickness: Thick (T>0.5mm); Standard (0.5mm>T>0.2mm);
3. Dimension: Smallest diameter is 5mm, Biggest is 100mm;
4. Metal plate type: Silver
5. Connection terminal: Solder wire or not.





3. Applications for ceramics



Piezo Ceramic Element: Applications (Piezoceramics element; Piezo diaphragm, piezo plate)

1. For sound making:Clocks,Calculators,Telephones,Washing machines,Various(Burglar alarms,etc);
2. For transduction: Embryo monitor,Heart reflectoscope reflector,pedometer, car alarm sensor.

3. For face lift beauty devices.

4. For medical devices.

5. For distance measuring.

6. Hydrophone

7. Oceanography



Specifications:

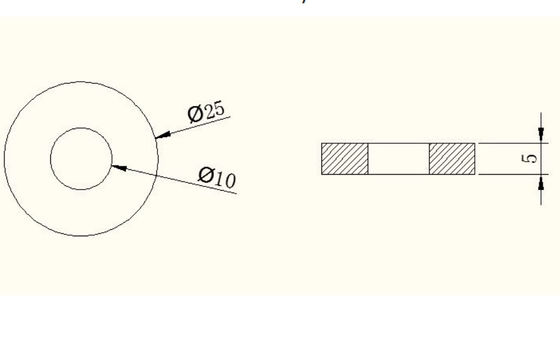

Dimension: OD:25mm x ID:10mm x Thi: 5mm
Material: P81
Capacitance: 800pf± 15%
Frequency: 65 khz± 5%
Zr: <30Ω

Coupling Factor (KP)

>45%

Dielectric loss (tgδ)

<1%





Applications:

Welding machine

Drilling machine

Face mask machine
