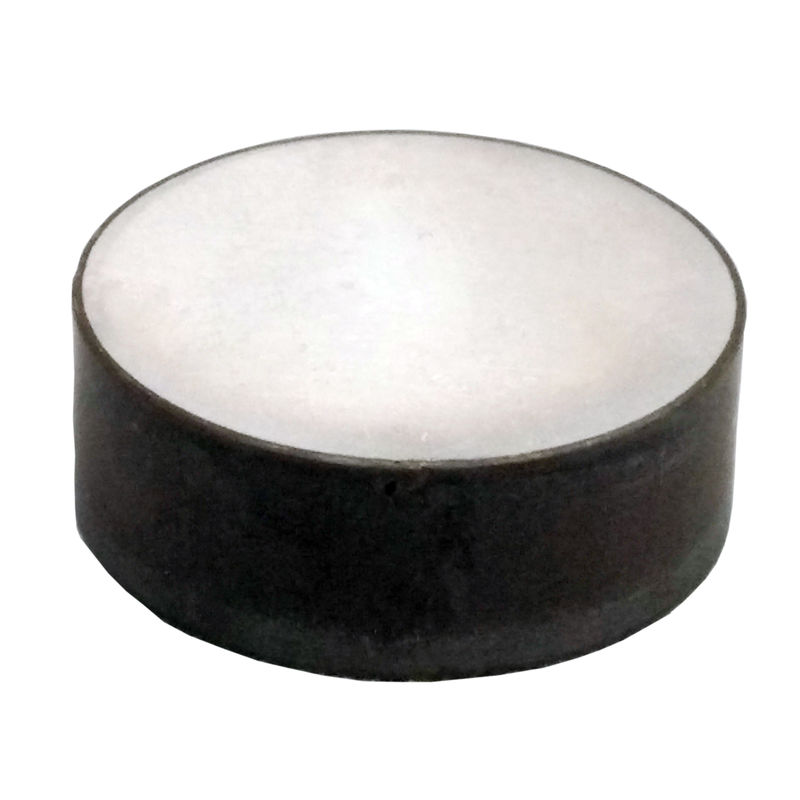

Diameter 27.4mm Piezo Ceramic Disk Round Shape For Fishing Finder Transducer

Diameter 27.4mm Piezo Ceramic Disk Round Shape For Fishing Finder Transducer

Diameter 27.4mm Piezo Ceramic Disk Round Shape For Fishing Finder Transducer
Diameter 27.4mm Piezo Ceramic Disk Round Shape For Fishing Finder Transducer

Large Image :  Diameter 27.4mm Piezo Ceramic Disk Round Shape For Fishing Finder Transducer Get Best Price

Product Details:

Place of Origin: Jiangsu, China
Brand Name: YUJIE
Certification: ISO9001
Model Number: 27.4x10.2mm

Payment & Shipping Terms:

Minimum Order Quantity: 180 Piece/Pieces
Price: Negotiable
Packaging Details: carton
Delivery Time: 3~30 working days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Piece/Pieces per Month
Detailed Product Description
Material: PZT Type: Piezoelectric Ceramics
Frequency: 44khz Shape: Round
High Light:

ultrasonic piezo disc

,

piezoelectric ceramic disc

Piezoelectric Disc Of Diameter 27.4 mm For Fishing Finder Transducer



1. Product description



Piezoelectricity is a type of electricity that occurs when materials possessing piezoelectric properties are exposed to pressure or stress. Examples of these materials are ceramics, also called piezoceramics , and crystals.

Piezoelectric Ceramics (piezoceramics), such as Piezoelectric Ceramic Ring, Piezoelectric Ceramic Disc, Piezoelectric Ceramic Tube, Piezoelectric Ceramic Ball/Hemisphere, Piezoelectric Ceramic Cylinder and Piezoelectric Ceramic Square/Rectangular.



2. Brief description of piezo ceramic element & Attributive Characters

1. Electrode form/ Modulating: External drive (diode); Self drive (transistor);
2. Thickness: Thick (T>0.5mm); Standard (0.5mm>T>0.2mm);
3. Dimension: Smallest diameter is 5mm, Biggest is 100mm;
4. Metal plate type: Silver
5. Connection terminal: Solder wire or not.





3. Applications for ceramics



Piezo Ceramic Element: Applications (Piezoceramics element; Piezo diaphragm, piezo plate)

1. For sound making:Clocks,Calculators,Telephones,Washing machines,Various(Burglar alarms,etc);
2. For transduction: Embryo monitor,Heart reflectoscope reflector,pedometer, car alarm sensor.

3. For face lift beauty devices.

4. For medical devices.

5. For distance measuring.

6. Hydrophone

7. Oceanography



Piezoelectric Ceramic Element







Specifications:

Dimension: 27.4x10.2mm
Piezoelectric material : P-44
Resonant Frequency : 200KHz ± 5%
Coupling Factor (KP) : >0.35%
Capacitance (Cp): 700 PF ± 20%
Dielectric loss (tgδ): < 0.5%
Resonant Resistance (R) : < 35ohm





Applications:



Fish Finder,

Depth Measure.
