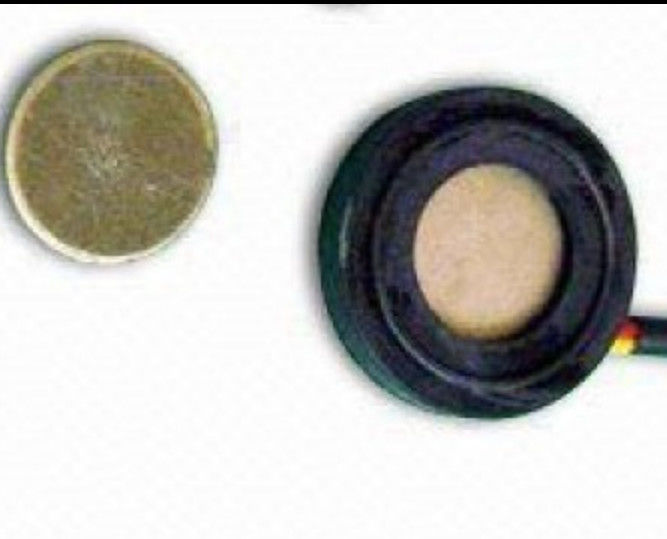

Portable Ultrasonic Atomizing Transducer , Piezo Ceramic Element Long Working Life

Name: Portable Ultrasonic Atomizing Transducer , Piezo Ceramic Element Long Working Life
Brand: YUJIE
SKU: 1.70Y20D
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (154 reviews)

Large Image : Portable Ultrasonic Atomizing Transducer , Piezo Ceramic Element Long Working Life Get Best Price

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	YUJIE
Certification:	ISO9001
Model Number:	1.70Y20D

Payment & Shipping Terms:

Minimum Order Quantity:	1000 Piece/Pieces
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	3~30 working days
Payment Terms:	T/T, Western Union
Supply Ability:	200000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Material:

PZT

Type:

Piezoelectric Ceramics

Surface Plating:

Glaze

Port:

Shenzhen

High Light:

ultrasonic atomizing piezoelectric transducer

piezoelectric materials

Ultrasonic Atomizing Transducer Of 1.70Y20D piezo element for humidifier

1.70Y20D Ceramic:

MODEL	OD	Performance Parameter				Drive condition
	OD	Resonance Frequency	Resonance impedance	Static capacitance	Coupling coefficient	Import pressure	Import current	water level	Fog output
	(mm)	(MHz)±4%	(Ω)max.	(pF)±20%	(%)min.	(V)	(A)	(mm)	(ml/h)
1.65Y25D	25	1.65	3	1630	40	48	0.75	50	400
1.70Y20G	20	1.70	3	2160	40	48	0.65	45	350
1.70Y20S	20	1.70	3	1670	40	24	0.60	45	350
